Analysis of the Core Structure and Application of Slurry Pumps

Explore the essential structure and applications of slurry pumps in our in-depth analysis. Discover their pivotal roles across industries like mining, construction, and wastewater management. Gain insights into slurry pump operations and efficiency to enhance performance and productivity.



In the field of industrial fluid transport, slurry pumps have become key equipment for handling high-concentration solid-liquid mixtures due to their excellent wear resistance and stable operating characteristics. This type of pump achieves efficient transport of media containing solid particles through intricate mechanical design and is widely used in various complex operating conditions. This article will delve into the technical features and engineering value of slurry pumps from three dimensions: core component design, operational preparation key points, and industry application fields.

一、Precise Structure and Functional Analysis of Core Components

The core components of the slurry pump consist of the impeller, pump casing, shaft sealing device, and drive part.

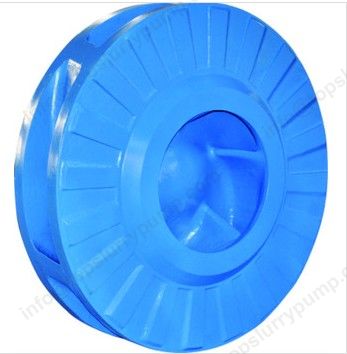

       （一）Impeller: The Core Hub of Energy Conversion

The impeller, as the core of power transmission in a slurry pump, typically has 6 to 12 backward-curved blades. Its design directly determines the pump's delivery efficiency and medium adaptability. This component converts the mechanical energy from the prime mover into static pressure energy and kinetic energy of the liquid through its backward-curved blade structure, with the enhancement of static pressure energy as the main objective. The backward-curved blade design effectively reduces the impact losses of liquid at the impeller outlet, optimizing the energy conversion process.

According to different structural forms, impellers can be divided into three typical types:

    ▢  The open impeller has no covers on both sides of the blades. This simple design offers advantages such as easy manufacturing processes and convenient cleaning and maintenance, making it particularly suitable for transporting materials that contain a large amount of suspended solids, such as mining tailings slurry. However, due to the lack of constraints on the flow of liquid between the blades, its efficiency is relatively low, and the conveying pressure is limited.

▢ The semi-open impeller has a cover plate on one side, while the other side lacks a cover plate. This design balances clogging resistance and efficiency to some extent, making it suitable for transporting media that are prone to sedimentation or contain moderate particle concentrations, such as slurry solutions in the metallurgy industry.

         ▢ The closed impeller is equipped with front and rear cover plates on both sides of the blades, forming a sealed flow passage. This structure maximally reduces liquid leakage, increases transportation efficiency, and is suitable for transporting clean liquids free of impurities, making it widely used in chemical processes.

The liquid suction methods of impellers are divided into single suction and double suction. Single-suction impellers have a compact structure and are suitable for medium and small pumps, while double-suction impellers balance axial forces through symmetrical design, reduce bearing loads, and enhance operational stability, making them commonly used in high-flow transport scenarios. In terms of material selection, impellers are usually made of high-chromium cast iron, wear-resistant rubber, and other wear-resistant materials to withstand the abrasion caused by high-concentration particulate media.

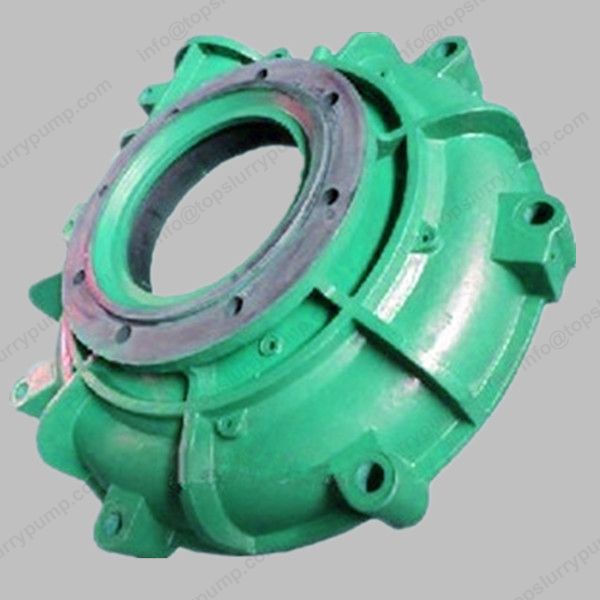

       （二）Pump casing: A carrier for flow channel construction and energy conversion.

        • The pump casing, also known as the shroud, is an important pressure-bearing component of the slurry pump, serving a dual function of constructing the flow channel and converting energy. Its shape commonly adopts a volute design, which allows for a unique spiral flow channel that can uniformly collect the high-speed liquid expelled by the impeller. By gradually increasing the cross-sectional area, the design smoothly reduces the liquid flow velocity, efficiently converting kinetic energy into static pressure energy. The design of the volute follows fluid mechanics principles, ensuring that the pressure distribution is uniform as the liquid flows within the pump casing, thereby reducing turbulence and pressure drop losses.

 • From a functional perspective, the pump casing first provides a sealed working space for the impeller, forming a complete flow path for the intake and discharge of liquids. Secondly, as an energy conversion device, the gradient design of its flow channel cross-section allows the kinetic energy of the high-speed liquid to gradually convert into static pressure energy, thereby increasing the delivery pressure. At the same time, the pump casing plays a role in connecting the upstream and downstream pipelines, guiding the liquid discharged by the impeller evenly into the next transport unit or directing it to the outlet. In terms of structural design, the pump casing needs to possess sufficient strength and rigidity to withstand mechanical loads and medium erosion under high-pressure conditions. Regarding material selection, metal pump casings are suitable for high-hardness particulate media, while rubber-lined pump casings perform exceptionally well in corrosive environments. By making reasonable material choices, the service life of the pump casing can be significantly extended.

（三）Shaft sealing device: the key barrier for sealing protection

 The main function of the shaft sealing device is to prevent the liquid inside the pump casing from leaking along the shaft and to prevent external air from entering, ensuring a sealed environment within the pump body. According to operational requirements, slurry pumps mainly use three types of shaft seals, each with its unique technical characteristics and applicable scenarios.

 The auxiliary impeller shaft seal is achieved by placing an auxiliary impeller behind the main impeller, utilizing the centrifugal force generated by the rotation of the auxiliary impeller to create sealing pressure, thus preventing medium leakage. This sealing method does not require additional shaft seal water, avoiding the dilution of the conveyed medium. It is particularly suitable for the first stage impeller of single-stage or multi-stage slurry pumps with relatively low positive pressure at the pump inlet, demonstrating significant advantages in scenarios that require medium purity, such as in mining filling systems.

 The packing shaft seal uses a traditional packing box structure, achieving sealing through the compression of packing by a gland. This type of structure is simple and convenient for maintenance, but its operation relies on a continuous supply of sealing water to cool and lubricate the packing. It is suitable for conditions where auxiliary impeller shaft seals cannot be used, such as when transporting high-viscosity or fibrous media, as the flexible sealing characteristics of the packing can adapt to a certain degree of shaft system vibration.

 Mechanical seals rely on the end face contact between the dynamic ring and the static ring to achieve sealing. The dynamic ring rotates with the shaft, while the static ring is fixed to the pump casing. The tiny gap between them forms a liquid film under the pressure of the sealing medium, preventing leakage. This type of sealing has excellent sealing performance, low leakage, and is suitable for conditions with high pressure, high speed, and strict sealing requirements, such as the transportation of corrosive media in the petrochemical industry.

（四）Transmission part: Stable guarantee of power transmission

 The drive part serves as a key component connecting the power source and the impeller, and its design directly affects the slurry pump's operational stability and lifespan. The horizontal slurry pump uses standardized drive components, including brackets and bearing assemblies. The pump shaft features a large diameter design, significantly improving rigidity, shortening cantilever length, and effectively suppressing bending and vibration under harsh working conditions. The bearing selection is based on power transmission and load characteristics, utilizing heavy-duty single-row or double-row tapered roller bearings and cylindrical roller bearings, able to withstand complex axial and radial loads.

The lubrication system adopts a grease lubrication method, with sealed end caps, labyrinth sleeves, and labyrinth rings equipped at both ends of the bearing body, forming a multi-layer dustproof structure to prevent slurry and other contaminants from entering the bearing, ensuring lubrication effectiveness and bearing life. The precision machining and assembly processes of the drive components guarantee the coaxiality and axial clearance of the coupling, reducing energy loss and vibration noise during the transmission process, thereby providing a solid guarantee for the long-term reliable operation of the pump body.

二、What are the preparatory tasks before the slurry pump operation?

​To ensure that the slurry pump can operate stably and efficiently after it is put into operation, a comprehensive and detailed pre-start inspection is required, covering multiple aspects including mechanical, electrical, and fluid systems.

（一）Pipework and Fittings Inspection

First, check the valves, flanges, anchor bolts, couplings, thermometers, and pressure gauges on the slurry pump's inlet and outlet pipelines to ensure that the valves operate smoothly, the flange connections are tight and leak-free, and the anchor bolts are secure and reliable to avoid loosening due to vibrations during operation. At the same time, calibrate measurement instruments such as thermometers and pressure gauges to ensure their sensitivity and accuracy, providing reliable data for operational monitoring.

（二）Rotating parts inspection


 Manually rotate the pump to check the flexibility of its operation, listening for any abnormal noises or jamming. During the rotation process, there should be a feeling of even resistance, with no obvious jamming or looseness, to confirm that there are no foreign objects blocking the impeller and pump casing, and that the bearings are operating normally.

（三）Fastening and Lubrication Operations

Check the tightening status of screws in each part, especially at key connection points such as bearing housings and couplings, to prevent bolt loosening due to vibrations during operation. According to the equipment manual, add the appropriate type of lubricating oil or grease to the bearing box, ensuring that the oil level remains within the specified range to provide adequate lubrication for the bearings.

（四）Medium Filling and Ventilation

Open the inlet valve to fill the pump body with the liquid to be delivered while expelling the internal air to avoid cavitation. For pumps that are being started for the first time or have been out of service for an extended period, special attention must be paid to the venting operation to ensure that the internal environment of the pump body is filled with liquid. Then, close the outlet valve to prepare for starting the motor.

（五）Cooling and Safety System Confirmation

Connect the cooling water system, check if the piping is smooth, and ensure the water pressure meets the requirements to ensure effective cooling of the shaft sealing device and bearings. At the same time, check safety protective equipment, such as the coupling protective cover and grounding wire, to ensure they are properly installed to prevent safety accidents.

（六）Unit alignment inspection

Measure the concentricity and axial clearance of the coupling using professional tools to ensure the alignment of the motor and pump shaft axes, avoiding vibrations and abnormal bearing wear caused by misalignment. Manually rotate the coupling; it should turn smoothly without any noticeable imbalance.



三、Diverse application fields and technological advantages.

The slurry pump, with its significant advantages such as corrosion resistance, wear resistance, high efficiency and energy saving, high degree of generalization, and ease of maintenance, plays an indispensable role in multiple industrial fields and has become the preferred equipment for fluid delivery under complex operating conditions.

（一）Mining industry

In the mining extraction and processing process, slurry pumps are mainly used for transporting ore slurry, tailings, and filling materials. Mining slurry typically contains a high concentration of hard particles such as quartz and metal oxides, which severely wear down the pump body. The wear-resistant impeller and pump casing materials of slurry pumps can effectively withstand this harsh environment, ensuring the long-term stable operation of the tailings transport system. In the filling mining process, the shaft-sealing-less water design of the auxiliary impeller prevents the dilution of filling materials, ensuring the accuracy of the filling material ratio.

（二）Metallurgical industry

In the metallurgical process, slurry pumps are used in various stages such as ore washing, hot blast stove slag transportation, and steel rolling wastewater treatment. For example, in the slurry classification operations at a mineral processing plant, the high-efficiency characteristics of the closed impeller can enhance the delivery pressure of the slurry, ensuring the stability of feed into the classification equipment. For acid washing wastewater containing corrosive media, pumps made with anti-corrosive materials for the pump casing and impeller can withstand the erosion of acidic liquids, thus extending the equipment's lifespan.

（三）Coal industry

​In the coal washing process, slurry pumps are used to transport coal mud, heavy medium suspensions, and other materials. The coal powder particles in the coal slurry have a certain degree of viscosity, and the semi-open impeller design ensures both anti-clogging performance and maintains a high transportation efficiency. In the coal gangue filling system, the high rigidity design of the drive part can withstand the impact load of large particle materials, ensuring the continuous operation of the filling work.

 ​（四）Electric power industry

In the desulfurization system of a thermal power plant, the slurry pump is responsible for transporting limestone slurry and gypsum slurry. These media contain corrosive components such as chloride ions and have a high concentration of solid particles, which imposes stringent requirements on the anti-corrosion and wear-resistant properties of the pump body. The combination of a rubber-lined pump casing and mechanical seals effectively addresses the corrosive environment, while the low leakage characteristics of the mechanical seals prevent slurry contamination of the equipment foundation.

（五）Environmental protection and municipal affairs

In sewage treatment plants, slurry pumps are used to transport wastewater and sludge containing suspended solids and fibrous impurities. The anti-blockage performance of open impellers is particularly advantageous in these working conditions, effectively preventing issues of impeller jamming caused by fiber entanglement. In municipal drainage projects, the large flow capacity of double-suction impellers is suitable for emergency drainage during heavy rain, ensuring the smooth operation of urban drainage systems.

（六）Petrochemical and Construction Industry

In the petrochemical field, slurry pumps can transport media such as sand-containing crude oil and chemical slurries. By selecting corrosion-resistant materials and high-precision mechanical seals, they meet the transportation requirements for flammable, explosive, toxic, and harmful substances. In the construction industry, slurry pumps are used for concrete delivery and mud circulation in pile foundation projects. Their standardized component design facilitates on-site maintenance and replacement, thereby improving construction efficiency.



四、Conclusion

The core component design of the slurry pump incorporates advanced concepts from fluid mechanics, materials science, and mechanical engineering. Through the collaborative operation of the impeller, pump casing, shaft sealing device, and transmission system, it achieves efficient transportation of complex media. Meticulous preparations before operation are a necessary prerequisite to ensure the safe and reliable functioning of the equipment, while the diverse application scenarios highlight its significant role in the industrial sector. With the continuous advancements in material technology and manufacturing processes, the slurry pump will play a key role in more demanding conditions, driving industrial fluid transport technology to new heights.​
