Analysis of the Role of the Slurry Pump Casing and the Pre-operation Preparation Work
Among industrial fluid conveying equipment, the slurry pump is capable of handling various complex media with its excellent performance. As a key component of the slurry pump, the pump casing plays an indispensable role.
Among industrial fluid conveying equipment, the slurry pump is capable of handling various complex media with its excellent performance. As a key component of the slurry pump, the pump casing plays an indispensable role. At the same time, thorough pre-operation preparation work for the slurry pump is the foundation for ensuring its safe and efficient operation. Having an in-depth understanding of the role of the pump casing and the key points of pre-operation preparation is of great significance for optimizing the use and maintenance of the slurry pump.

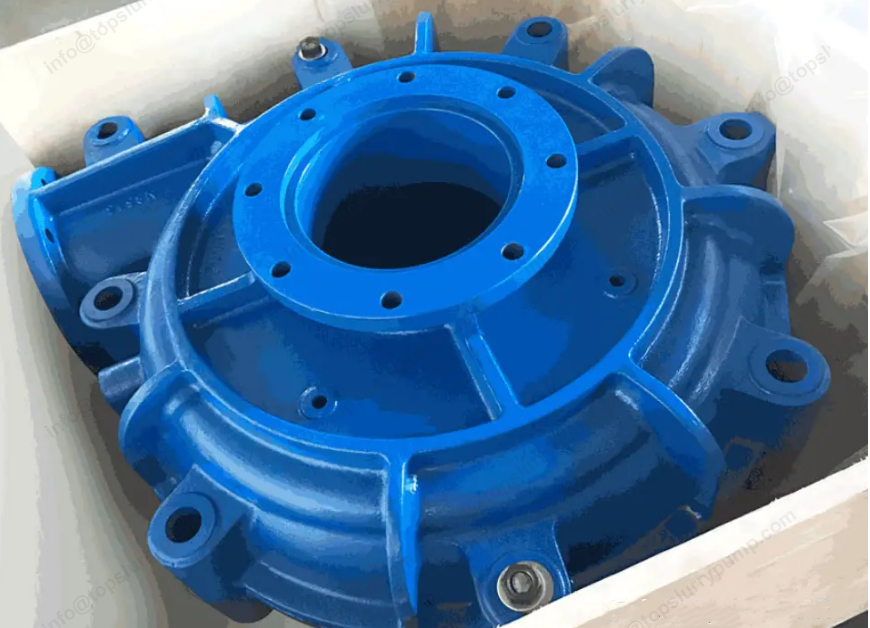

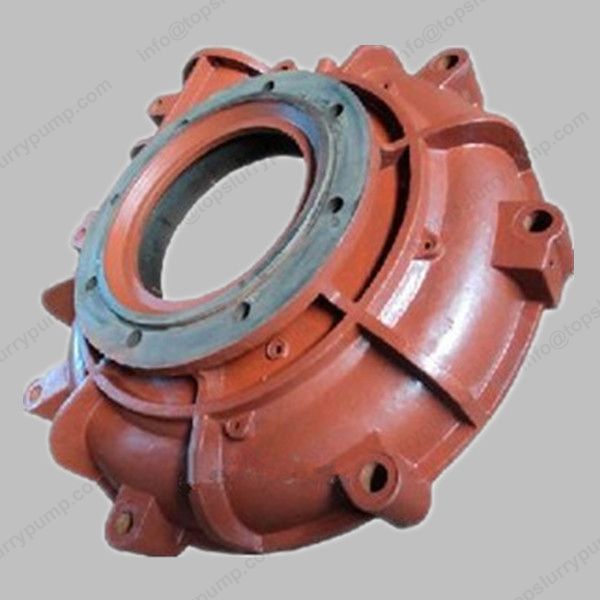

Six Core Roles of the Slurry Pump Casing
Closed Space to Ensure the Liquid Conveying Process
The pump casing is like a precisely crafted "container" that tightly encloses the impeller within a specific space. This closed space is a necessary condition for the slurry pump to achieve liquid suction and discharge. When the impeller rotates at high speed inside the pump casing, it generates suction through the centrifugal force, sucks the liquid into the pump, and then gives the liquid kinetic energy through rotation and throws it out. The presence of the pump casing is like defining a clear path for the liquid's "journey", enabling the liquid to flow orderly within the specified channel, avoiding leakage or disorderly diffusion of the liquid during the flow process, and thus ensuring that the slurry pump can efficiently complete the liquid conveying task. Whether it is the conveying of high-concentration ore pulp in mines or the transmission of sewage containing suspended substances in sewage treatment plants, the closed space of the pump casing provides a stable environment for the normal operation of the impeller and ensures the smooth progress of the entire liquid conveying process.
Unique Volute Design to Achieve Efficient Energy Conversion
Most pump casings of slurry pumps adopt a volute design. This unique shape is by no means accidental but contains sophisticated fluid mechanics principles. The cross-sectional area of the volute flow channel gradually expands starting from the outlet of the impeller. When the liquid thrown out by the impeller at high speed enters the volute flow channel, as the cross-sectional area of the flow channel increases, the flow velocity of the liquid gradually decreases. According to the law of conservation of energy, while the flow velocity of the liquid decreases, its kinetic energy is gradually converted into static pressure energy. This design makes the pump casing not just a housing for containing the liquid but also an efficient energy conversion device. In the metallurgical industry, when conveying ore pulp solutions containing particles, the volute design can effectively convert the kinetic energy of the liquid into static pressure energy, increase the conveying pressure of the liquid, enable the ore pulp to be smoothly conveyed to the designated position, reduce energy loss, and improve the conveying efficiency.
Collection and Guidance to Optimize the Liquid Conveying Path
The pump casing undertakes the important responsibility of collecting and guiding the liquid. It is like a "transportation hub" that gathers the high-speed liquid thrown out by the impeller and then, according to the subsequent conveying requirements, evenly guides the liquid into the next-level equipment or towards the outlet. In some multi-stage slurry pump systems, the pump casing can smoothly introduce the liquid discharged from the previous-stage impeller into the next-stage impeller, ensuring the continuous flow of the liquid in the pump group. At the same time, before the liquid enters the impeller, the pump casing also plays a role in preliminary guidance, enabling the liquid to enter the impeller at an appropriate angle and flow velocity, giving full play to the role of the impeller and improving the overall performance of the slurry pump. This function of collecting and guiding the liquid ensures that the slurry pump can closely cooperate with other equipment in complex industrial processes to achieve efficient and orderly liquid conveying.
Stable Connection to Support the Overall Structure of the Pump Body
The pump casing also plays a crucial role in connecting other components and providing support within the structural system of the slurry pump. It is closely connected to components such as the pump shaft, impeller, and bearing assembly, organically combining these components to form a complete pump body structure. The strength and stiffness of the pump casing directly affect the stability of the entire pump body. During the operation of the slurry pump, it will be affected by various external forces such as liquid pressure and mechanical vibration. The pump casing needs to have sufficient strength to withstand these external forces to prevent deformation or damage. At the same time, it provides a stable installation foundation for other components, ensuring that each component maintains the correct relative position during operation and ensuring the normal operation of the pump body. For example, in large-scale mine slurry pump equipment, through precise processing and assembly, the pump casing closely cooperates with other components to support the weight of the entire pump body and various forces generated during operation, ensuring the stable operation of the equipment.
Energy Conversion Hub to Improve the Conveying Performance
The pump casing, as the core hub of energy conversion, plays a role throughout the entire flow process of the liquid in the pump. In addition to converting the kinetic energy of the liquid into static pressure energy through the volute-shaped flow channel, the design of the flow channel inside the pump casing also fully considers the resistance and energy loss of the liquid flow. Through a reasonable flow channel shape and surface treatment, the pump casing can reduce the frictional resistance of the liquid during the flow process, reduce energy loss, and further improve the energy conversion efficiency. When conveying corrosive liquids in the chemical industry, the pump casing not only needs to have good anti-corrosion performance but also ensure that the internal flow channel is smooth and reasonable to ensure that the liquid can achieve maximum energy conversion during the conveying process, improve the conveying performance of the slurry pump, and meet the strict requirements for liquid conveying pressure and flow rate in chemical production.
Cooperative Coordination to Ensure the Stable Operation of the Pump Body
The six roles of the pump casing do not exist independently but cooperate with each other to jointly ensure the stable operation of the slurry pump. The closed space provides a basic environment for energy conversion and liquid conveying. The volute design achieves efficient energy conversion. The functions of collection and guidance ensure the orderly flow of the liquid. The connection and support function maintains the structural stability of the pump body, and the energy conversion hub further optimizes the conveying performance. These functions are closely combined, enabling the slurry pump to maintain a good working state in the face of different working conditions and media. For example, when conveying coal slime and heavy medium suspension in the coal industry, the various functions of the pump casing work together. It can withstand the erosion and wear of coal slime particles and efficiently convert the energy generated by the impeller into conveying pressure, ensuring the smooth conveying of coal slime and suspension and providing reliable support for production links such as coal washing.
Comprehensive Pre-operation Preparation Work for the Slurry Pump
Inspection of Pipelines and Accessories: Ensuring the Safety and Reliability of the Conveying Channel
Before starting the slurry pump, it is crucial to carefully inspect components such as valves, flanges, and anchor bolts on the pump inlet and outlet pipelines. The valve, as a key component for controlling the liquid flow, must be flexible in opening and closing to accurately regulate the liquid flow rate and control the conveying process. The flange connection part must be tightly sealed to prevent liquid leakage during the operation of the pump, which may cause material waste or environmental pollution. The firmness of the anchor bolts directly affects the stability of the pump body. If the bolts are loose, under the action of vibration generated during the operation of the pump, the pump body may be displaced or damaged. Therefore, it is necessary to carefully check and tighten the anchor bolts. At the same time, calibrate measuring instruments such as thermometers and pressure gauges to ensure their sensitivity and accuracy. These instruments can monitor the operating parameters of the pump in real-time, providing accurate data support for operators to promptly discover and handle abnormal situations and ensure the safe operation of the pump.
Inspection of Rotating Components: Ensuring the Smooth Operation of the Pump Body
Manual turning of the pump shaft is an important means to check the operating status of the rotating components of the slurry pump. Slowly rotate the pump shaft and carefully listen for any abnormal noises or jamming phenomena. During the process of turning the shaft, a uniform resistance should be felt. If there is obvious obstruction or looseness, it indicates that there may be problems such as debris jamming inside the pump, damaged bearings, or friction between the impeller and the pump casing. If these problems are not dealt with in a timely manner, after the pump is started, it may lead to equipment damage or even safety accidents. Therefore, during the process of turning the shaft, it is necessary to carefully check to ensure that there is no debris between the impeller and the pump casing and that the bearings operate normally, laying a foundation for the smooth start and stable operation of the pump.
Tightening and Lubrication Work: Reducing Wear and Extending the Equipment Lifespan
Checking the tightening status of screws at various parts is an important part of the pre-operation preparation work, especially for key connection parts such as the bearing housing and the coupling. During the operation of the slurry pump, due to the action of vibration and mechanical force, the screws may become loose. Once the screws are loose, the relative position between components will change, affecting the normal operation of the pump and may even lead to serious equipment failures. Therefore, it is necessary to check and tighten all screws one by one to ensure the reliability of the connection part. At the same time, according to the requirements of the equipment instruction manual, add the appropriate type of lubricating oil or grease to the bearing box. Appropriate lubrication can effectively reduce the friction between rotating components such as bearings, reduce wear, and extend the service life of the equipment. The oil level should be maintained within the specified scale range. If the oil level is too low, it cannot provide sufficient lubrication; if the oil level is too high, the lubricating oil may overflow or increase the operating resistance. Therefore, it is necessary to strictly control the oil level to ensure that the bearings are fully and reasonably lubricated.
Medium Filling and Exhausting: Avoiding Cavitation and Ensuring Normal Operation
Open the inlet valve to fill the pump body with the liquid to be conveyed and discharge the internal air, which is a key step to prevent cavitation. Cavitation refers to the phenomenon that when the liquid pressure in the pump is lower than its saturated vapor pressure, the gas in the liquid escapes to form bubbles, and these bubbles burst in the high-pressure area, causing impact and corrosion on the components of the pump body. For a slurry pump that is started for the first time or has been out of use for a long time, there may be a large amount of air inside. If the air is not fully exhausted, after the slurry pump is started, the air will affect the normal suction and conveying of the liquid, resulting in a decrease in the performance of the slurry pump and even damage to the components of the pump body. Therefore, it is necessary to ensure that the pump body forms a working environment filled with liquid, and then close the outlet valve to prepare for starting the motor. Through this operation, the occurrence of cavitation can be effectively avoided, ensuring the normal operation of the slurry pump.
Confirmation of the Cooling and Safety System: Ensuring the Safety of the Equipment and Personnel
Connect the cooling water system and check whether the pipeline is unobstructed and whether the water pressure meets the requirements, which is crucial for cooling the shaft seal device and bearings of the slurry pump. The shaft seal device will generate frictional heat during operation. If it cannot be cooled in a timely manner, the sealing material may age and be damaged, resulting in leakage. The bearings will also generate a large amount of heat during high-speed rotation. If the heat dissipation is poor, it will affect the service life of the bearings and may even lead to the burning of the bearings. Therefore, ensuring the normal operation of the cooling water system can provide effective cooling for the shaft seal device and bearings, ensuring their normal operation. At the same time, check whether safety protection equipment such as the coupling protective cover and the grounding wire are installed in place. The coupling protective cover can prevent operators from coming into contact with the high-speed rotating coupling during the operation of the equipment, avoiding mechanical injury accidents; the grounding wire can conduct the static electricity on the equipment housing to the ground, preventing the accumulation of static electricity from causing fire or electric shock accidents. These safety protection devices are important barriers to ensure the safety of the equipment and personnel and must be installed correctly and firmly.
Inspection of the Unit Alignment: Reducing Vibration and Improving the Operating Stability
Use professional tools to measure the concentricity and axial clearance of the coupling to ensure that the axes of the prime mover and the pump shaft are consistent, which is a key step to reduce the vibration and noise during the operation of the slurry pump. If the prime mover and the pump shaft are not aligned, additional radial and axial forces will be generated during operation, causing the vibration of the pump body to intensify. This will not only affect the performance and service life of the pump but may also have an adverse impact on surrounding equipment and the environment. At the same time, manually turn the coupling, and it should rotate flexibly without any unbalanced phenomenon. Through this inspection, the alignment of the unit and the installation quality of the rotating components can be further verified. Only by ensuring good alignment of the unit can the vibration be reduced, the operating stability of the slurry pump be improved, and the long-term reliable operation of the equipment be ensured.
The six roles of the slurry pump casing are interrelated and work together to provide a solid guarantee for the efficient operation of the slurry pump; and the comprehensive and meticulous pre-operation preparation work is a necessary prerequisite for ensuring the safe start and stable operation of the slurry pump. In industrial production, fully understanding and attaching importance to the role of the pump casing and the pre-operation preparation work can effectively improve the performance and reliability of the slurry pump, reduce the risk of equipment failures, improve production efficiency, and create greater value for enterprises.
