In the operation of slurry pumps, the shaft seal device acts as a loyal guardian, tasked with preventing the leakage of liquid inside the pump and the intrusion of external air. A reasonable shaft seal design not only affects the pump's operational efficiency but also has far-reaching implications for equipment safety, production environment, and resource utilization. Currently, the common shaft seal types for slurry pumps mainly include packing seals, auxiliary impeller seals, and mechanical seals, each with unique characteristics suitable for different industrial conditions.

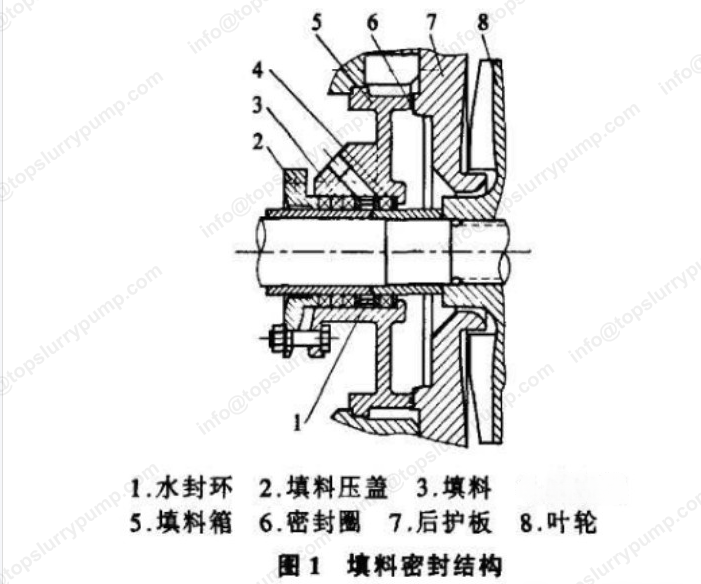

1. Packing Seal: A Traditional and Reliable Sealing Method

As a time-honored and widely used sealing structure, the packing seal operates on the principle of physical contact under pressure. Soft packing is tightly packed into a specially designed stuffing box, and pressure is applied via a gland to make the packing adhere closely to the outer cylindrical surface of the shaft or shaft sleeve, forming a sealing barrier. The effectiveness of this seal relies on shaft seal water injected into the stuffing box, with a pressure higher than the pump's outlet pressure to ensure sealing integrity.



In practical operation, the packing seal serves two critical functions: it prevents slurry from leaking outward, avoiding equipment and environmental contamination, and it stops air from entering the pump cavity—especially important for suction-type slurry pumps. Air intrusion can cause cavitation, severely damaging pump components and reducing performance and service life.



The packing seal is favored for its simple structure, relatively low cost, and ease of maintenance—only worn packing needs replacement. This makes it suitable for scenarios with moderate sealing requirements and simple working conditions. For instance, in the tailings conveying pumps of small-scale mines, due to the relatively short conveying distance and stable medium concentration, the packing seal can meet the basic sealing requirements, and its low cost and ease of maintenance reduce the operating costs of the equipment. However, drawbacks exist: continuous use of shaft seal water dilutes the conveyed medium, and friction between the packing and shaft generates heat, leading to rapid wear and frequent packing replacement, increasing maintenance workload and costs.



2. Auxiliary Impeller Seal: Non-Contact Sealing Using Fluid Dynamics

The auxiliary impeller seal is a non-contact sealing method that relies on fluid dynamics. As the auxiliary impeller rotates with the pump shaft, it generates pressure in air or clear water, creating a balanced state of air-slurry or water-slurry at the outer edge of the auxiliary impeller. This balanced pressure resists the outward leakage tendency of liquid from the main impeller, achieving sealing.



This seal is ideal for low-pressure, impurity-laden liquids, especially those containing particles or fibers. The non-contact design avoids direct friction between sealing components and impurities, reducing wear and extending service life. In mine backfill systems conveying slurries with gravel and sand, auxiliary impeller seals operate stably, preventing leakage without worrying about impurity-induced wear.



There are two common structural types: the metal pressure relief cover auxiliary impeller seal and the rubber pressure relief cover auxiliary impeller seal. The metal type is more widely used due to its high strength and wear resistance, capable of withstanding high pressure and impact in harsh conditions. However, a notable drawback is the additional power consumption required to maintain the auxiliary impeller's rotation and sealing pressure, increasing equipment energy consumption.

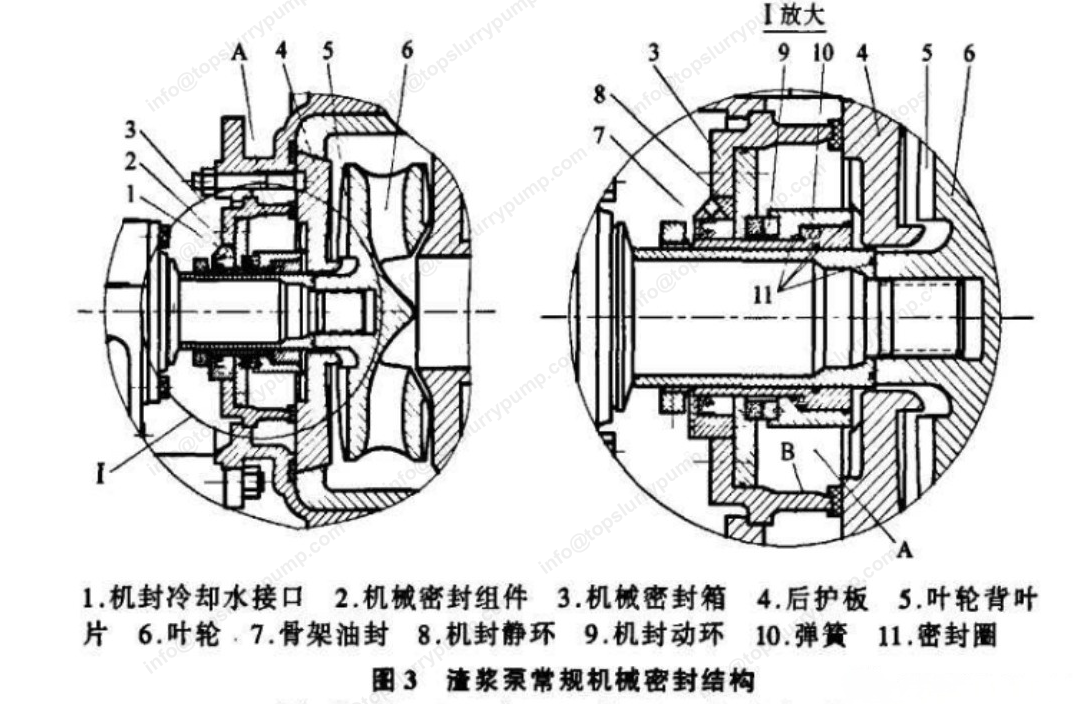

3. Mechanical Seal: A High-Efficiency and Reliable Modern Sealing Technology

Mechanical seals have become a preferred choice for slurry pumps due to their excellent performance. The structure comprises precision components: a rotating ring, a stationary ring, a compression element (spring), and sealing elements (o-rings). The rotating ring connects to the shaft, rotating and moving axially, while the stationary ring is fixed to the pump casing. During operation, the pressure exerted by the compression element and the pressure of the liquid in the sealing chamber work together to cause the end face of the moving ring to closely adhere to the end face of the stationary ring. A hydrodynamic lubrication film between the faces reduces friction and wear during relative rotation.



The tight contact between the rotating and stationary rings, combined with sealing rings, blocks all potential leakage paths, creating an efficient seal between the rotating part (shaft sleeve/shaft) and the stationary part (pump casing). Mechanical seals offer high reliability, long service life, and strong adaptability to harsh conditions. In petrochemical industries transporting corrosive, toxic, or valuable liquids, they ensure zero leakage, protecting operators and preventing environmental pollution and material loss. They also maintain stable performance under extreme conditions like high temperature, pressure, and speed.



However, mechanical seals have limitations: complex structures, high manufacturing precision requirements, and higher costs. Installation and maintenance require skilled technicians and strict environmental/process conditions, increasing maintenance difficulty and costs. Nevertheless, as technology advances and applications expand, costs are decreasing, and their efficiency and reliability make them increasingly popular across industries.



4. Selection and Application of Shaft Seal Types

Choosing a shaft seal for a slurry pump is not arbitrary; it requires comprehensive consideration of factors such as the conveyed medium's properties (concentration, particle size, corrosiveness), operating pressure, flow rate, rotational speed, and lifecycle costs (maintenance included). Enterprises must weigh the pros and cons of each seal type against their specific conditions to ensure stable pump operation, reduce failure rates, improve productivity, and achieve both economic and safety/environmental goals.



Packing seals, auxiliary impeller seals, and mechanical seals each play an irreplaceable role in slurry pump sealing. As industrial technology evolves, shaft seal technology will continue to innovate, providing robust support for slurry pumps to operate stably in broader and more complex conditions.
